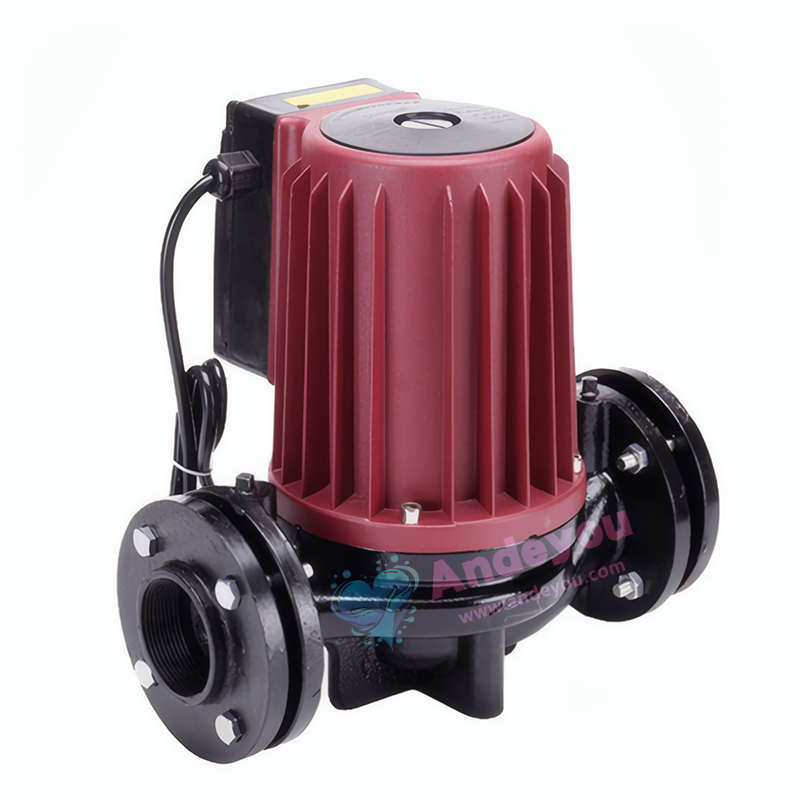

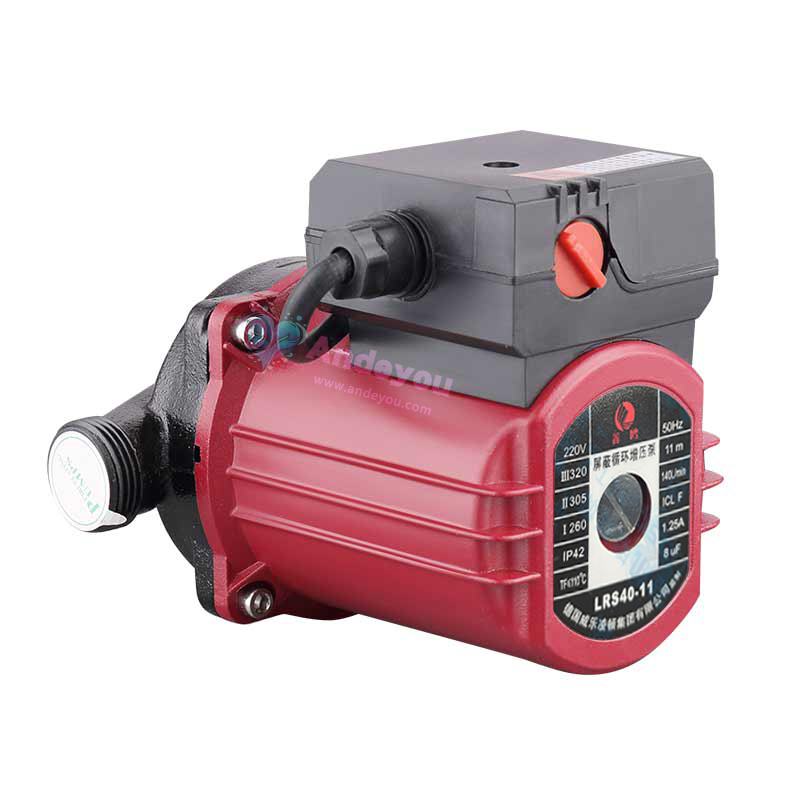

Xin'ou Domestic Canned Circulator Pump — A Quiet, Energy-Efficient Solution for Home Circulation Systems

I. Core Design Principles

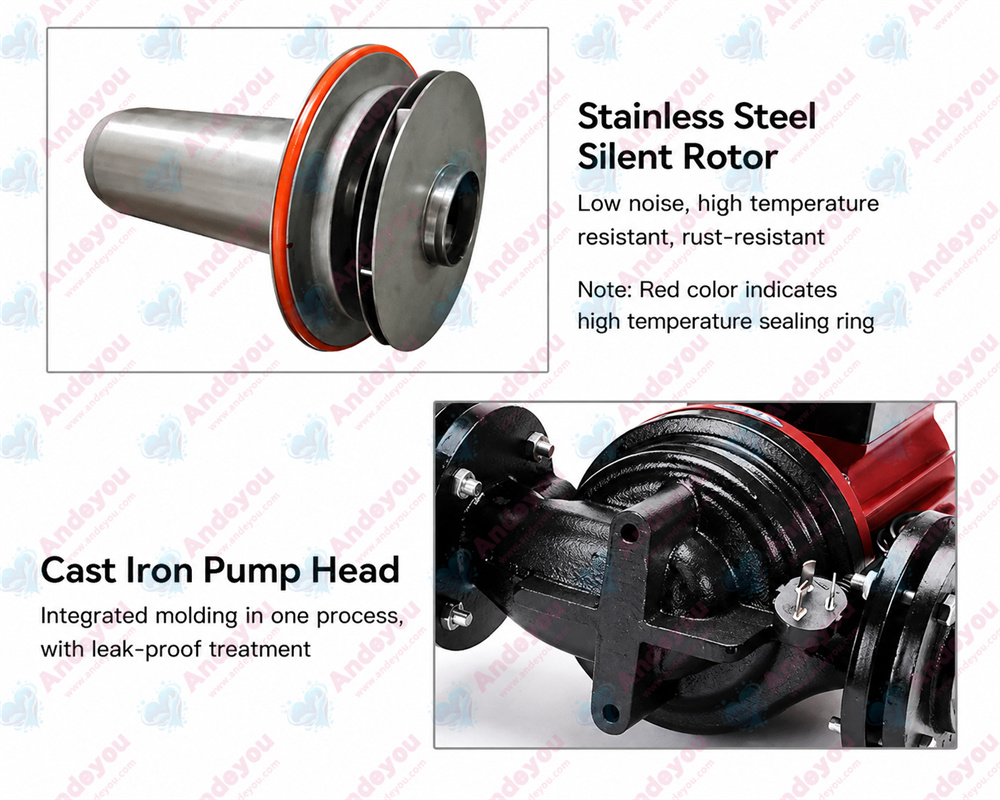

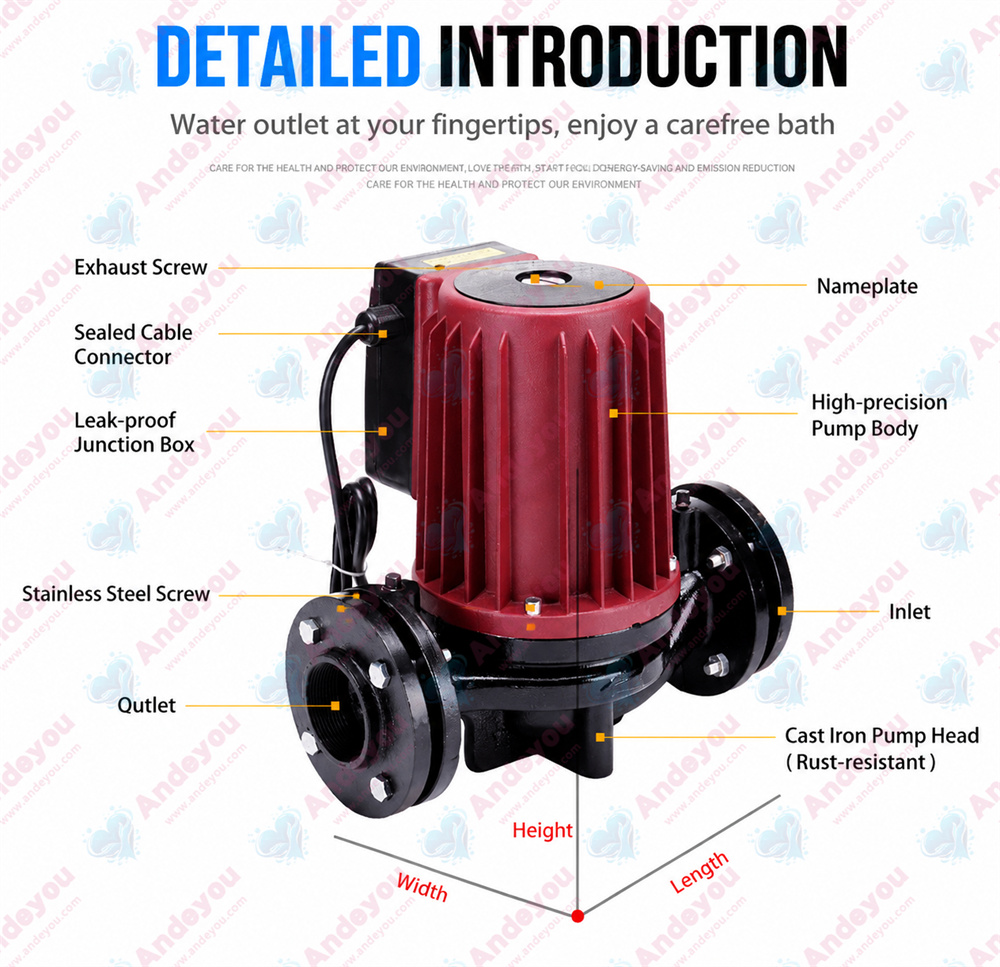

Featuring a fully enclosed canned design, the motor and pump body are integrated into a single unit. The rotor is driven to rotate within the fluid medium via a static magnetic field, completely eliminating the risk of leakage associated with mechanical seals. Both the stator and rotor are encased in double-layer stainless steel shielding sleeves, ensuring complete isolation of electromagnetic components from the circulating medium and achieving 100% leak-free operation.

II. Key Features

1. Ultra-quiet Operation

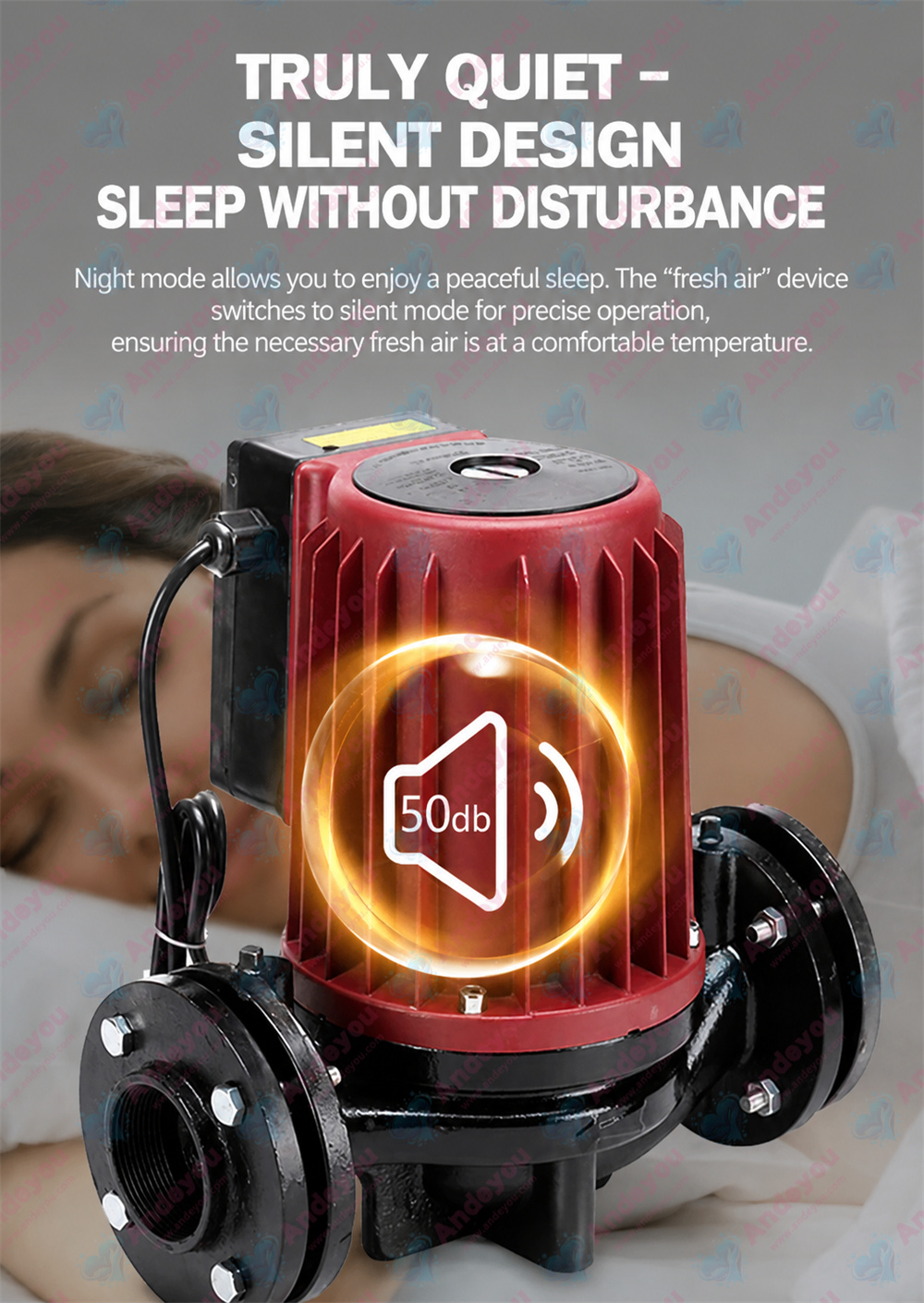

Dual noise-reduction technology: Eliminates traditional cooling fans in favor of a medium-based self-circulating cooling system; utilizes a graphite bearing and silicon carbide sleeve combination, resulting in operating noise ≤35dB (comparable to a library environment).
Vibration control: Rotor dynamically balanced to Grade 5 precision; features built-in shock-absorbing rubber pads, keeping vibration amplitude <0.05mm.
2. High Efficiency and Energy Saving

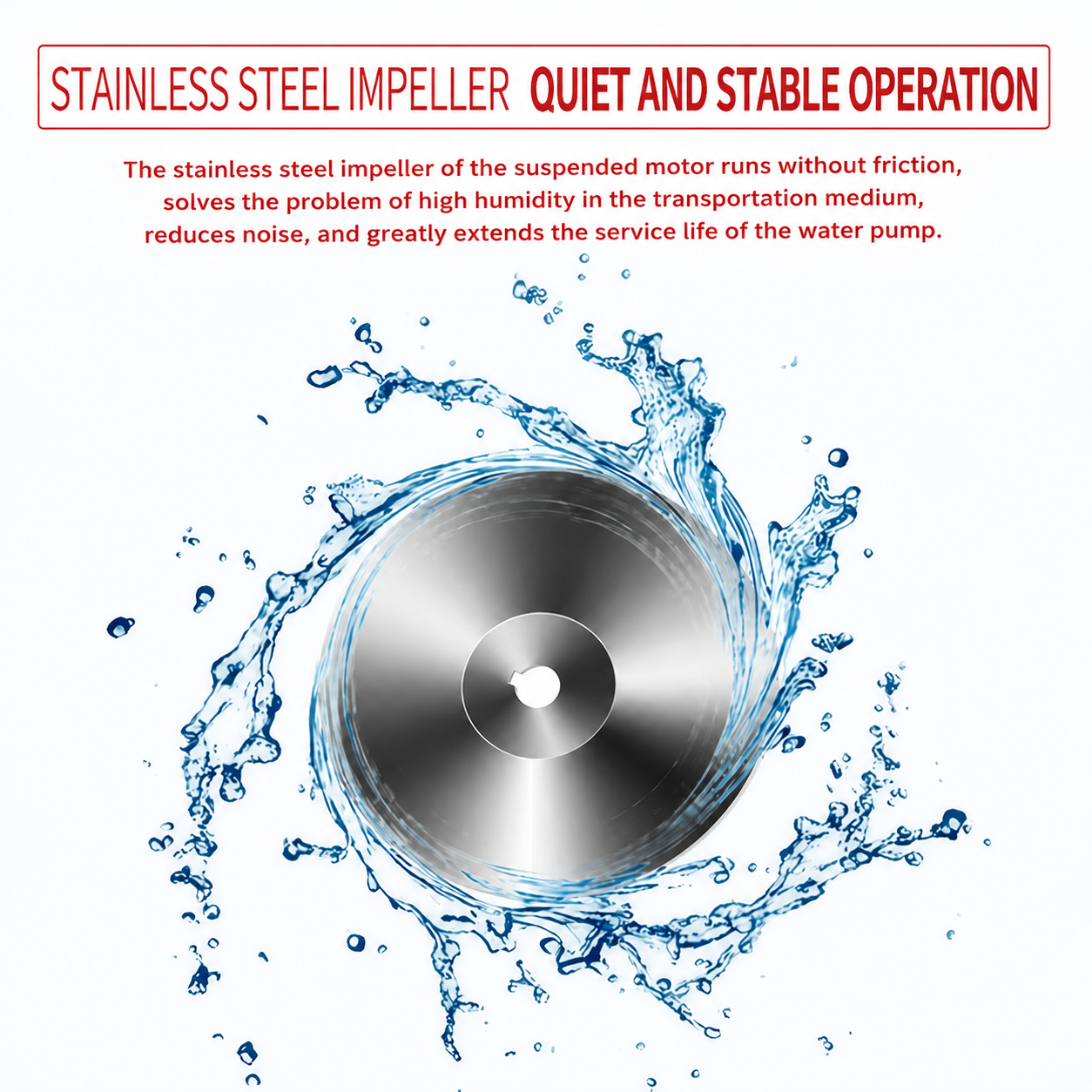

Energy optimization: Uses a high-efficiency motor paired with a stainless steel impeller design; saves over 20% more energy than standard circulation pumps, with even greater efficiency during continuous 24-hour operation.

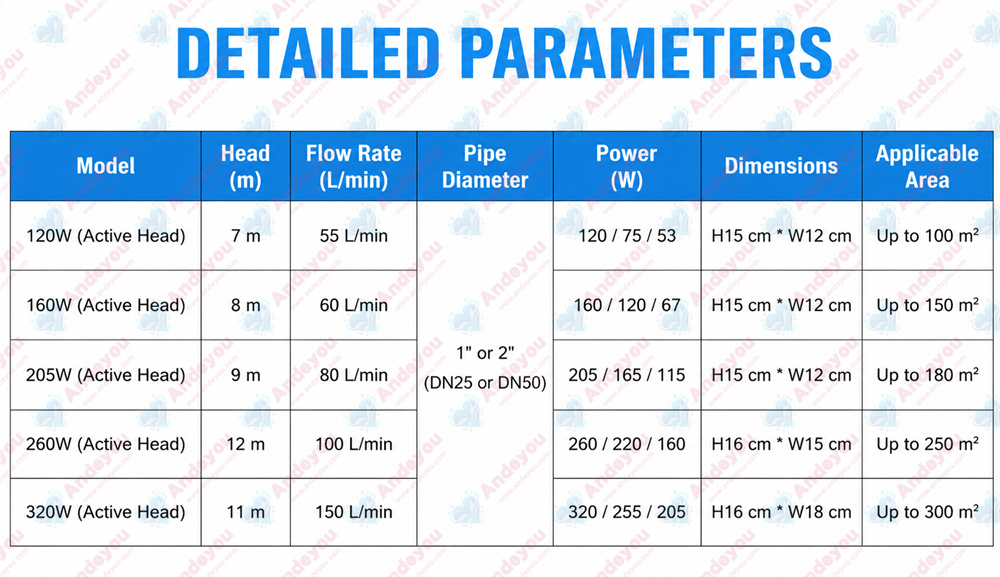

Adaptive control: Offers three-speed adjustment for models under 320W, allowing users to customize settings based on specific needs.

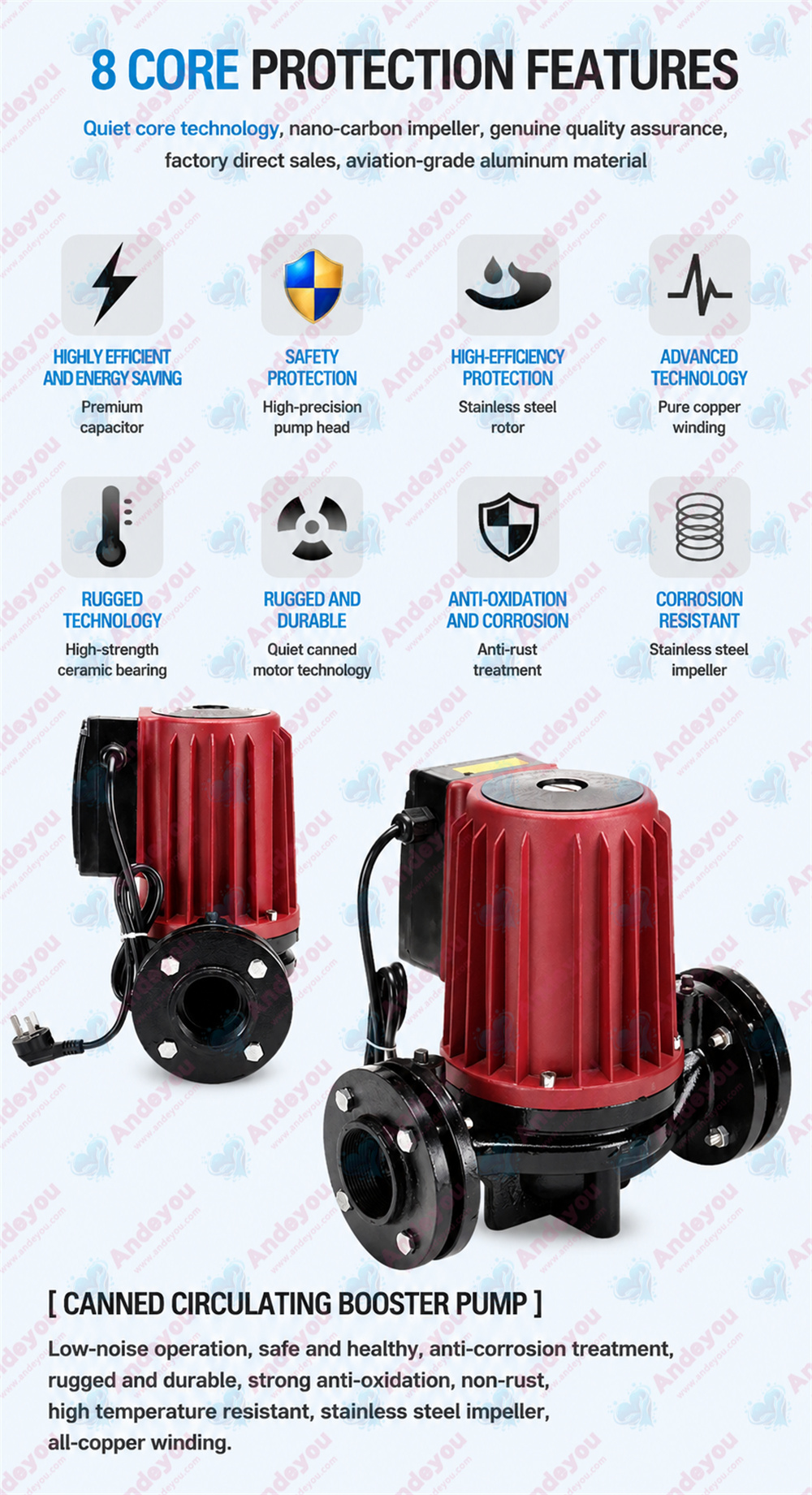

3. Safe and Durable Construction
Long-life design: Bearings made of self-lubricating silicon carbide material with a rated lifespan exceeding 30,000 hours; stator shielding sleeve made of 0.3mm ultra-thin stainless steel.

III. Adaptability to Special Conditions

Medium compatibility: Handles circulating water containing micro-particles (≤0.2mm) and withstands mildly acidic/alkaline media (pH 5–9).
Temperature range: Stable operation from -10°C to 110°C; high-temperature versions customizable up to 130°C (requires optional high-temp shielding sleeve).

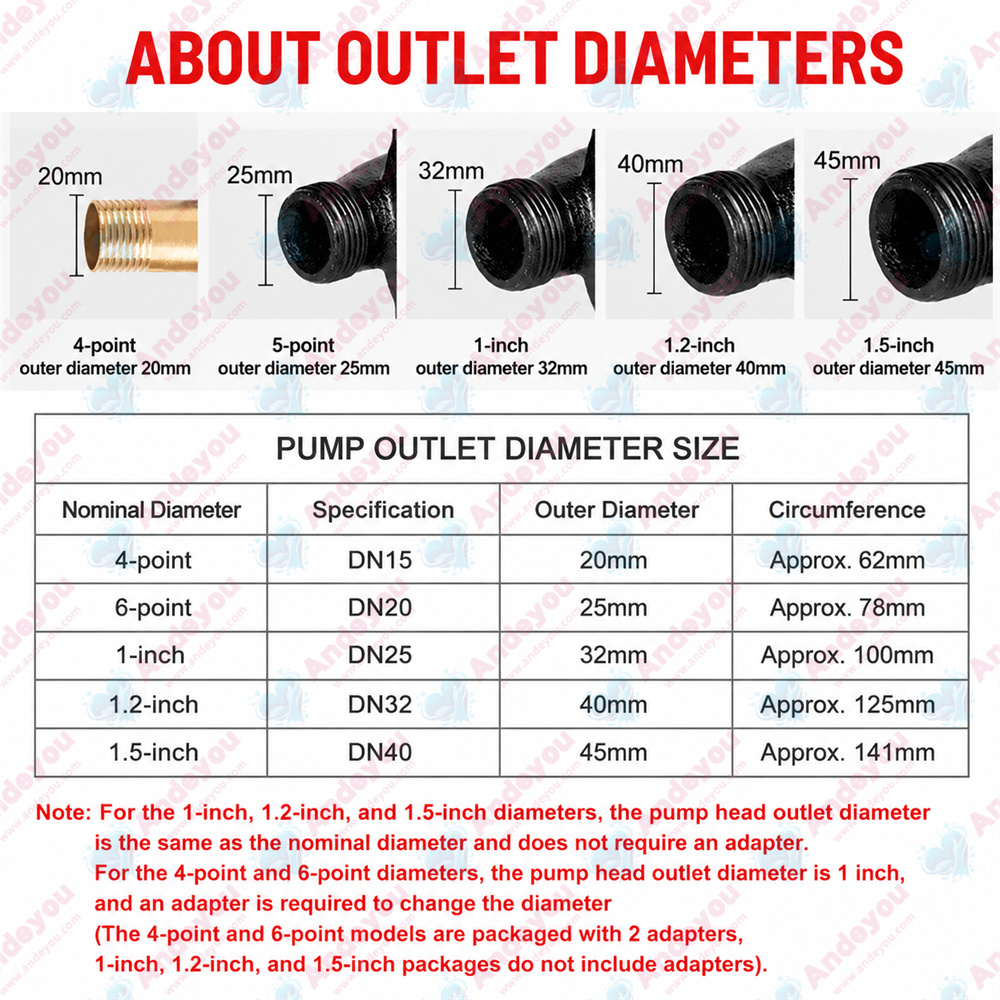

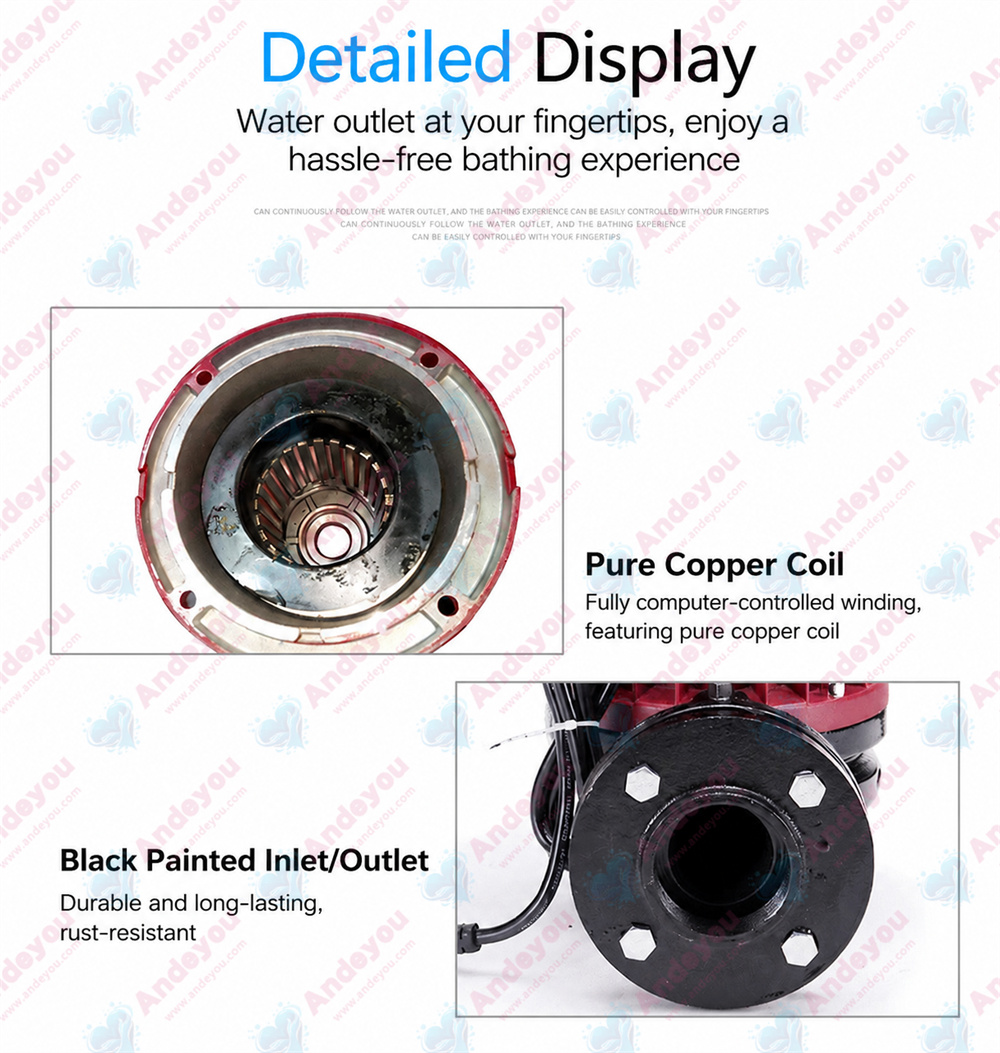

Installation flexibility: Supports horizontal or vertical installation; standard threaded inlet/outlet ports ensure compatibility with various residential piping systems.

IV. Typical Application Scenarios

Heating Systems
Underfloor heating circulation: Max head of 25m, meeting circulation needs for 1,800m² residences.
Radiator systems: Adjustable flow rates to suit various radiator configurations.
Hot Water Circulation
Instantaneous water heaters: Eliminates "cold water slugs" (initial cold water flow), achieving up to 30% water savings.
Solar thermal systems: Anti-cavitation design ensures stable circulation of high-temperature water.

V. Maintenance Points

Routine Maintenance
Inspect power cord insulation monthly.
Test grounding resistance quarterly (should be <4Ω).
Periodic Servicing
Replace bearing lubrication medium every 2 years.
Conduct stator insulation testing every 5 years.

This product integrates industrial-grade sealing technology—typical of canned motor pumps—with the specific requirements of residential applications.
