Operation is extremely convenient thanks to the setup wizard.

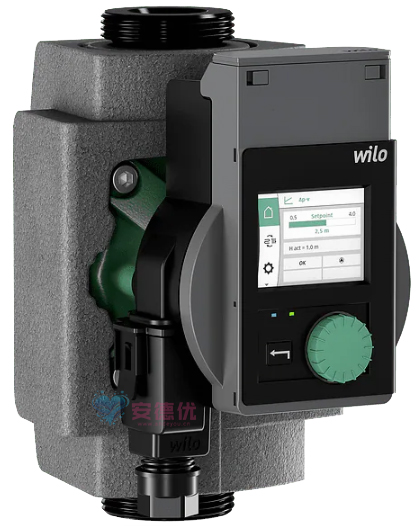

Equipped with a large display, proven Green Button Technology, and a new setup wizard, the pump is exceptionally easy to operate and run. Combining the Wilo-Stratos PICO with Dynamic Adapt plus ensures not only superior energy efficiency but also high reliability through automatic protection functions.
Features/Product Advantages
Easy operation via setup wizard, intuitive display, and Green Button Technology
Maximum energy efficiency achieved through the combination of EC motor technology, Dynamic Adapt plus, and precise adjustment capabilities
Optional: Communication capability via add-on modules
High reliability ensured by self-protection routines such as automatic dry-running detection and automatic restart functions
Easy monitoring of current power consumption, delivery head, and cumulative power consumption (kWh)
Simple electrical installation using the Wilo-Connector
Product Characteristics

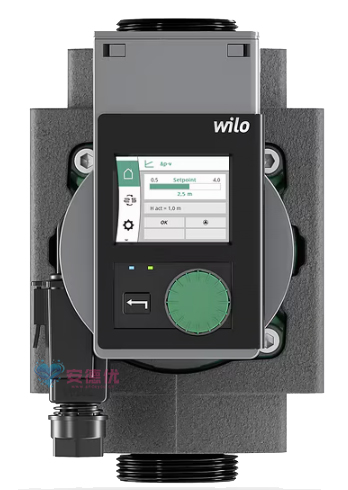

Full-graphic display with setup wizard
Automatic self-protection routines
EC motor
KTL-coated housing
Green Button Technology
Slot for expansion modules
Direct access to motor screws
Thermal insulation shell
Easily accessible Wilo-Connector
Eco-friendly Attributes
High-efficiency pump with automatic power adjustment (Energy Efficiency Index ≤ 0.18)
Maximum energy efficiency achieved through innovative control modes—such as Dynamic Adapt plus and energy-saving modes—and precise setting options
Sustainable and carbon-neutral production and processes at our European plants
Design
Glandless circulation pump with threaded connection, blocking-current-proof EC motor, and integrated electronic power control.
Applications

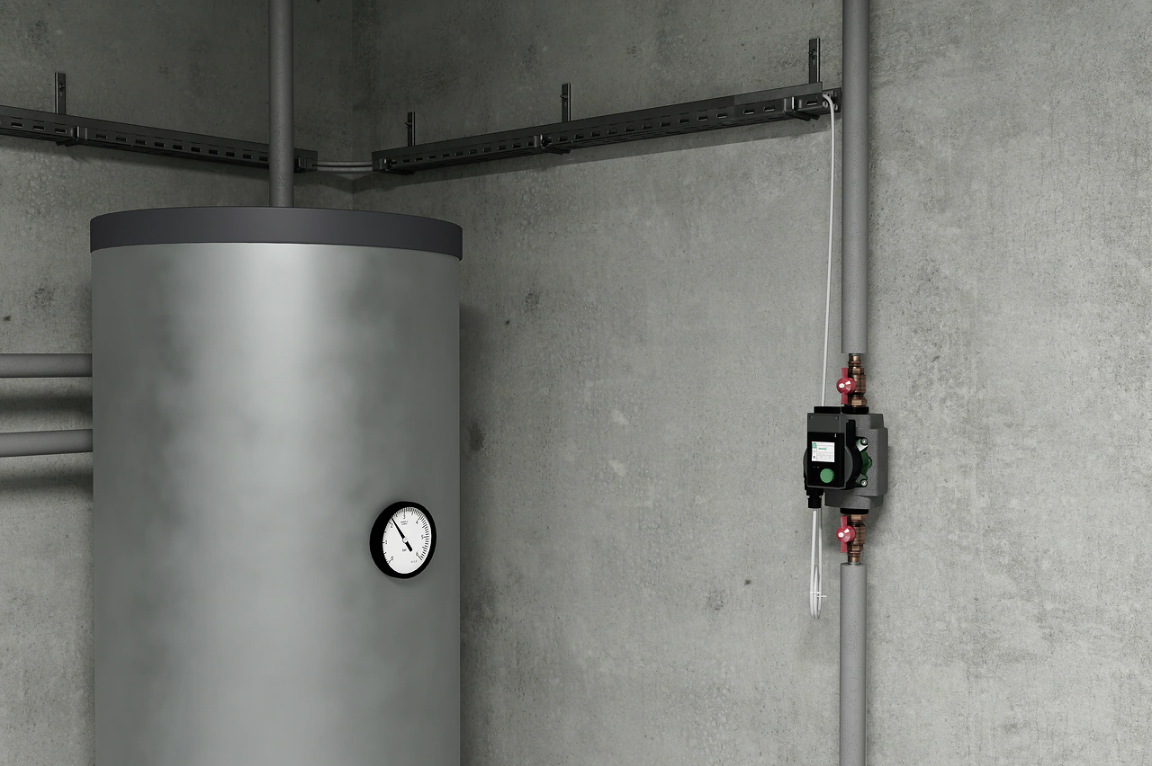

All domestic hot-water heating systems, air conditioning applications, and industrial circulation systems.
Equipment/Functions
Operating modes
Dynamic Adapt plus
Δ p-c (constant differential pressure)
Δ p-v (variable differential pressure)
Constant speed (n-const.)
Compatible with Wilo-Smart Balance App
Manual functions
Operating mode setting
Pump output (head) setting
Automatic energy-saving mode setting
Automatic valve operation (pressure-independent)
Pump venting
Manual restart
Reset function for electricity meter
Reset function for factory settings
Button lock for securing settings
Automatic functions
Continuous speed/power adjustment based on operating mode
Automatic energy-saving mode
Automatic venting function
Automatic dry-running detection
Automatic restart
Reporting and display functions
Alternating display of:
Current volume flow
Current head
Current speed
Power consumption
Energy consumption
Display status for warnings (yellow display) and faults (red display), including fault codes and plain-text descriptions
Display status for process indicators (blue display):
Pump venting
Manual restart
Status LEDs:
Green LED: Normal operation
Blue LED: Pump communicating with external module
Equipment
Wrench attachment points on pump housing
Quick electrical connection via Wilo-Connector
Automatic venting
Blocking-current-proof motor
Particle filter
Standard thermal insulation for heating applications
Wilo connection interface for external modules
Model code
|
Example: |
Wilo-Stratos PICO 30/0.5-8 |
|
Stratos PICO |
High-Efficiency CNC Pump (Screw Pump) |
|
30/ |
Nominal connection diameter |
|
0.5-8 |
Nominal head range [m] |
|
130 |
Installation length |
|
N |
Stainless steel housing |
|
BT |
The Wilo-Smart Connect module is included in the scope of delivery. |
Technical data
Fluid temperature: -10 °C to +110 °C
Mains connection: 1~230 V, 50 Hz
Protection class: IPX4D
Threaded connections: G1, G1½, G2
Max. operating pressure 10 bar
Materials
Pump housing: KTL-coated (electrophoretic coating) grey cast iron (Stainless steel: Model …-N)
Thermal insulation: Polypropylene
Shaft: Stainless steel
Bearings: Carbon, metal-impregnated
Impeller: Plastic
Scope of delivery
Pump
Thermal insulation
Wilo-Connector
Gaskets for threaded connection
Installation and operating instructions
Options
Stratos PICO...-N models feature a stainless steel pump housing, suitable for demanding systems (e.g., underfloor heating)
Stratos PICO...-130 models with a short installation length of 130 mm

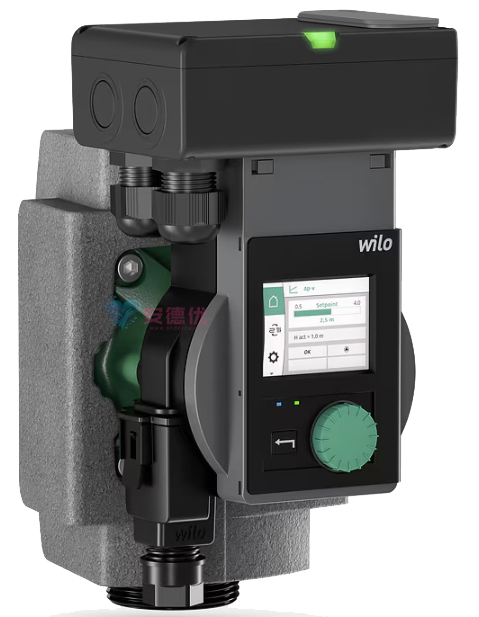

Stratos PICO... BT models (including Wilo-Smart Connect module BT)
Accessories
Threaded connections
Adapter fittings
Wilo-Connector with 2 m connecting cable and plug with earthing contact
Angled plug with 2 m connecting cable
Wilo-Smart Connect module BT
Wilo-Connect module BMS
Wilo-Connect module Modbus RTU
