Provides domestic hot water with maximum hygiene and low energy consumption.

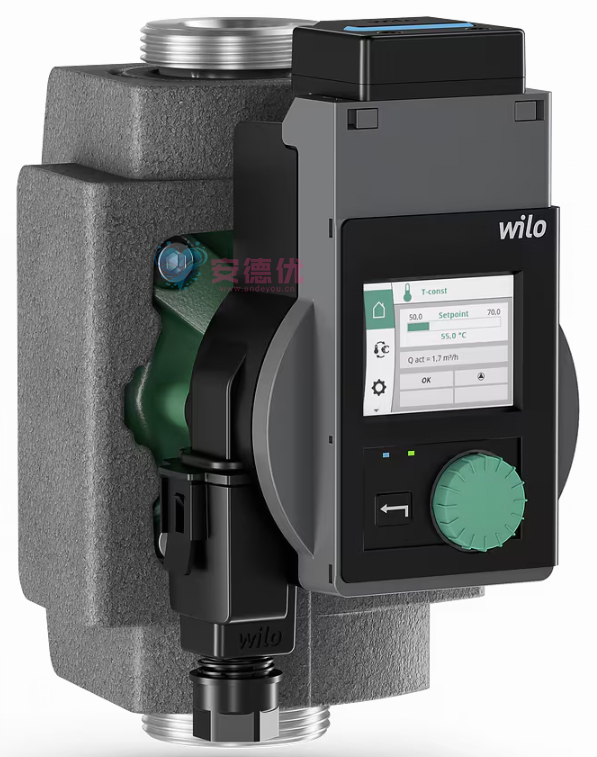

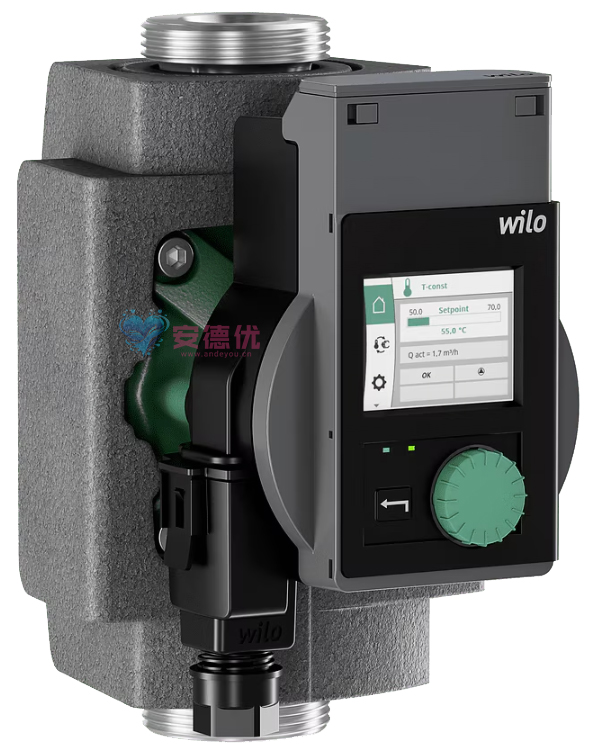

The Wilo-Stratos PICO-Z is the ideal circulation pump for domestic hot water systems in two-family homes, multi-family dwellings, and small mixed-use residential/commercial buildings. With its stainless steel pump housing and the ability to detect and support thermal disinfection, it ensures the highest level of hygienic safety for the entire domestic hot water system. The Wilo-Connector allows for quick electrical installation, and the factory settings enable immediate operation with just a single click. The high-efficiency pump, equipped with an EC motor and offering manual or temperature-controlled operating modes, provides various options for reducing individual power consumption. A large color display, a clear settings menu, and "Green Button Technology" make operating the pump highly convenient.
Features/Product Advantages
Stainless steel pump housing and detection/support for thermal disinfection ensure optimal hygiene in domestic hot water systems
Demand-oriented, energy-saving supply via temperature-controlled or manual operating modes
Simple operation thanks to a large color display, clear settings menu, and Green Button Technology
Easy electrical installation using the Wilo-Connector
Real-time monitoring of current parameters such as temperature, flow rate, power consumption, and cumulative energy usage (kWh)
One-touch commissioning via temperature control (factory setting)

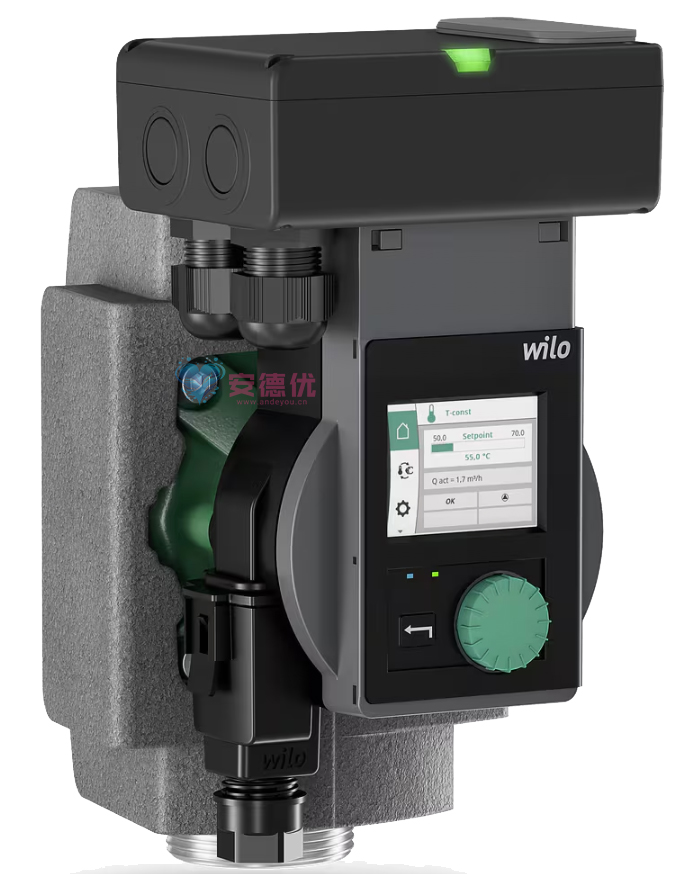

Optional: Communication capability via add-on modules
Product Features
Stainless steel pump housing
Slot for expansion modules
Direct access to motor screws

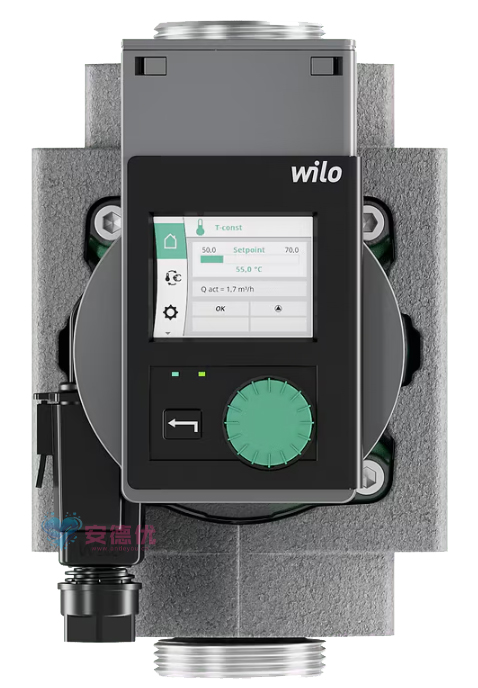

Full-graphic color display
Thermal insulation shell
EC motor
Green Button Technology
Easily accessible Wilo-Connector
Construction
Glandless circulation pump with threaded connection, blocking-current-proof EC motor, and integrated electronic power control.
Applications
Domestic hot water circulation systems in industrial and building services applications.
Equipment/Functions
Operating modes
T-const. (temperature-controlled mode)
Δp-c (constant differential pressure)
Constant speed (n-const.)
Manual functions
Setting the operating mode
Setting pump power (head)
Setting minimum temperature
Setting minimum flow rate
Pump venting
Manual restart
Reset function for electricity meter
Reset function for factory settings
Key lock for securing settings
Automatic functions
Stepless power adjustment based on operating mode
Temperature control to ensure constant return temperature in domestic hot water circulation systems
Routine thermal disinfection (detection and support of thermal disinfection for potable water storage tanks)
Automatic venting function
Automatic restart
Reporting and display functions
Alternating display of:
Current volume flow Q [m³/h]
Current head H [m]
Current speed n [rpm]
Power consumption P [W]
Energy consumption W [kWh]
Current temperature T [°C]
Display status for warnings (yellow display) and faults (red display), including fault codes and plain-text descriptions
Display status for processes (blue display):
Pump venting
Manual restart
Status LEDs:
Green LED: Normal operation
Blue LED: Pump communicating with external module
Equipment
Wrench attachment points on the pump housing
Quick electrical connection via Wilo-Connector
Blocking-current proof motor
Particle filter
Thermal insulation as standard
Wilo interface for external modules
Model code
|
Example: |
Wilo-Stratos PICO-Z 20/0.5-4 |
|
Stratos PICO |
High-Efficiency CNC Pump (Screw Pump) |
|
-Z |
Drinking water circulation |
|
20/ |
Nominal connection diameter |
|
0.5-4 |
Nominal head range [m] |
Technical data
Fluid temperature +2 °C to +95 °C
Power connection 1~230 V, 50 Hz
Protection class IPX4D
Threaded connections G1¼, G1½, G2
Maximum operating pressure 10 bar
Materials
Pump housing: Stainless steel
Thermal insulation: Polypropylene
Impeller: Plastic
Shaft: Oxide ceramic
Bearings: Carbon, synthetic resin-impregnated
Scope of delivery
Pump
Thermal insulation
Wilo-Connector
Seals for threaded connections
Installation and operating instructions
Accessories
Threaded connections
Adapter fittings
Wilo-Connector with 2 m connecting cable and plug with protective earth contact
Angled plug with 2 m connecting cable
Wilo-Smart Connect module BT
Wilo-Connect module BMS
Wilo-Connect module Modbus RTU
